Utilities for the Wavecom Decoders


Software

W4xAcars UPDATED 2011/05/29
W6xAcars UPDATED 2011/05/25
These Windows utilities implement a DDE server that allows the ACARS data flow to be processed by an external decoder such as PosFix.
  • W4xAcars runs either with the W40PC, W41PC or W51PC cards but has only been tested (local and remote connections) with the W40PC.
  • W6xAcars runs with the W61PC card.

W4xSynop UPDATED 2007/05/14
W6xSynop UPDATED 2008/02/04
These Windows utilities have been designed to get a Synop baudot stream processed by our Synop Decoder Active/X.
  • W4xSynop runs either with the W40PC, W41PC or W51PC cards but has only been tested (local and remote connections) with the W40PC.
  • W6xSynop runs with the W61PC card.

W6xRDS NEW 2008/02/26
This Windows utility implements a RDS decoder.

WireShark Plugins UPDATED 2011/05/23
A WireShark network protocol analyzer dissector package (Windows version only) for the Wavecom W61 Protocol.

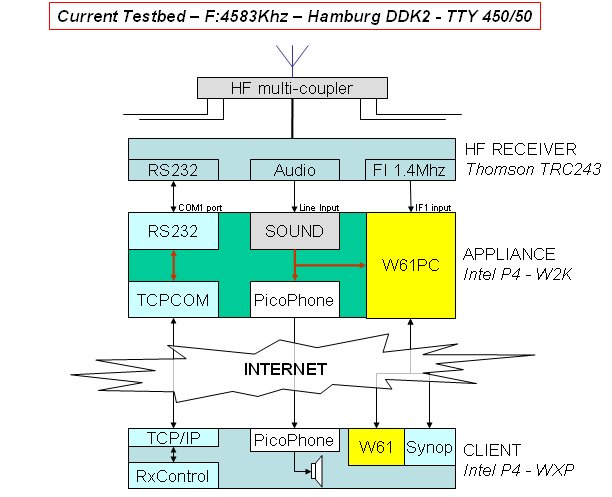

Development testbed

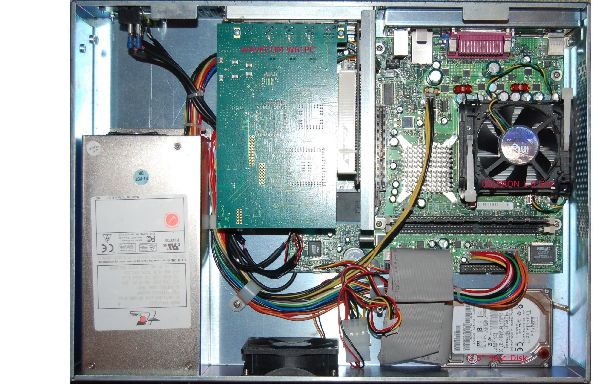

Hardware: W61PC within an appliance

Software: W61PC and related equipements


And many thanks to WAVECOM ELEKTRONIK AG for their help.

Last revision: 2011/05/29
